Pyramid 5300 bell ringer
Pyramid 5300 for Pyramid clocks

Pyramid 5300 workshift timer that allows many Pyramid clocks ring bells!

Our Price: $109.00
Shipping will be calculated during checkout.

Accessories & Supplies:

DetailsIDProduct NameDescriptionPriceAdd To Cart
Click 87 6 inch 24VDC Bell6" bell, 24V DC$90.00
Click 404 50' bell and buzzer wire50' Bell-Buzzer-Intercom Wire$19.95
Click 405 100' bell and buzzer wire100' Bell-Buzzer-Intercom Wire$29.00
Click 413 250' Spool Insulated Bell Wire250' Bell-Buzzer-Intercom Wire$89.00
Click 83 110V Power Supply110VAC Power Supply$49.00
Click 88 6" 96-102 db 110V Bell110V bell$99.00
Click 86 102db 110V Buzzer 874-N5102db loud Buzzer$139.00
Click 84 24V AC Power SupplyCustom Power Supply$75.00
Click 85 102db 24VAC Buzzer 874-G54" Loud Low Voltage Buzzer$139.00

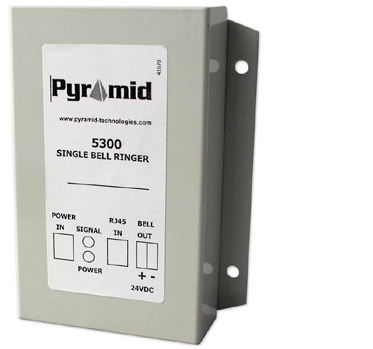

Pyramid 5300 work shift timer information

The Pyramid 5300 is a separate one circuit external signal controller.

It works as an add-on to various Pyramid clocks, sending out a 24VDC pulse.
It normally connects via twin stranded cable to the Pyramid
6 or 8" low voltage bells.

It has 72 signal event settings and is controller by the included software.
Each "time" is an event.  For example, 10:08AM that rings 5 days, Monday - Friday,
is one event, not five.  One.

The signal event time is synchronized with the master clock.
The events are individually programmed, as to day of week and
length (duration) of signal.

Example:  Noon (lunch) may be 2 seconds long,
12:28 would be 1 second (two minute warning)
12:30 might be 3 seconds long ("back to work!").

Or in the case of a school, 2 seconds any time of the day.
The 24VDC output can be used to trip a 24VDC relay and
then run any existing sounding devices you already have in place.

We know how to link these to intercom systems.


Part number: ptr 5300
